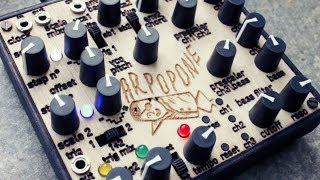

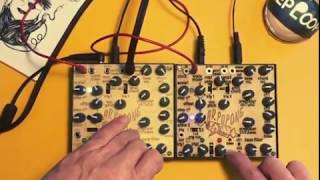

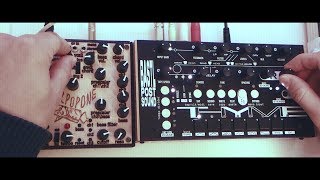

The Arpopone AKA HARP’O’PHONE is a melody/bass line generator with a chord  and  rhythmic section, available in desktop and euro rack format. It is based on analog ramp divider, similar to those used for the Multicassa which are inspired to Oskar Sala’s Mixtur Trautonium, an early electronic musical instrument.

Each divider generates a voltage ramp starting from a master clock (internal or external) a potentiometer is used to set the number of steps and thus the division ratio with a minimum of 1.

There are ten of such divider in the different sections of the instrument:

  • 2 for the rhythmic section (trigger pulses 1 and 2)
  • 2 for the scale generator, these have a ramp output that forms the melody line
  • 6 for the audio dividers, the 2 prescalers are chained with 4 note dividers, one for bass    and 3 for chords

A further divider comes into play if external clock is selected, in this case the BPM control acts as a clock divider making possible the synchronization with other instruments (at maximum speed divider=1)

Technical Info

CLOCK GENERATOR

BPM : Set the speed of master clock or the external clock divider (RED led)

EXT-INT: select internal clock (set by BPM) or external clock (via the EXT CLOCK IN) the EXT CLOCK OUT pulses are synchronous with the RED led flashes.

The Apopone accepts any type of clock pulse or square wave of 3/12 volts amplitude, with any polarity including the Midi clock (with custom cable) as long as in the midi bit line is present only midi clock message and no other messages like, notes, control changes, sysex, etc.
When in external clock, tempo pot. works as clock divider for the incoming clock in pulse, this is useful for divide fast clock like midi or synch 24 for slow clock like Korg volca series keep the divider to 1, tempo pot to max.

TRIGGER GENERATOR

TRIG1 TRIG2 : set how many clock pulses are needed to flash the GREEN and YELLOW led

DIVIDERS : the two trigger output are the rhythmic section of the instrument and are used for playing notes and advance notes of the scale generators the division ratio is 1 to around 40

TRIG MIX : selects a single trigger (1 or 2) or both (1+2) to advance the scales the output of TRIG MIX is also fed to the TRIGGER OUT

SCALE #STEP : Sets the number of steps for the two scale generators that, added together by the SCALE MIXER will play the melody on the VCO.

SCALE GENERATOR

The pulses selected with TRIG MIX are sent to two scale generators, each scale generator outputs a voltage that increases in steps.
The brightness of the two led’s (WHITE and BLUE) are proportional to the output voltage giving an indication of the current position in the scale.
The  number of steps is set by the two #STEP controls from a minimum of 1 to around 40.

SCALE MIXER

In the mixer section the two scale are summed together to obtain a more complex pattern, the amount of each scale can be set by two controls and can be positive (ascending scale) or negative (descending scale).

In center position the amount is 0 (steady note) an OFFSET control set the minimum voltage and hence the lowest note that can be played.



Be aware that these are NOT tempered scales, all micro intervals are possible fine tuning of the melody being played is done with these three scale mixer controls.

VCO

The notes are played by the vco, the VCO PITCH transposes the melody maintaining the same interval between notes, as set through the SCALE MIXER.

DIVIDER SECTION

The note generated by the VCO is fed to a chain of dividers to obtain 4 sub harmonics of the original note, one of these is the bass section with its own filter and envelope, the other three form the chord section with their envelope.

Arpopone module

Each divider is similar to the trigger dividers with the difference that it acts on notes and not on rhythms generating a subharmonic sequence: for example if the note produced by the VCO is C4 the output will be:
(rotating from left to right) C4,C3,F2,C2,Ab1,F1,D1(not really),C1,Bb0…

Two prescalers are used, each of them is chained with two dividers that further divide the note, the same way many types of chords can be generated by setting the proper dividers each single divider can be played separately by means of  the four buttons in the MANUAL PLAY section one for the bass the other three for each note that form the chord (CH1,CH2,CH3)

ENVELOPE SECTION

The two envelope section are identical, both have a selector for different trigger sources :
– TRIG1 & TRIG2 the envelope starts at the flash of the GREEN LED (bass) or YELLOW LED (chord)
-SB1 & SB2 the envelope starts at the first step of  SCALE1 (bass) or SCALE2 (chord)
-White & Blue  the envelope follows the intensity of the WHITE LED (bass) or the BLUE LED (chord) except for this setting the envelope length is set by the two controls BASS ENV and CHORD ENV an EXT CV input allows to provide an external envelope to drive the VCA.

BASS FILTER

The bass channel is passed through a resonant low pass filter with CUTOFF and RESONANCE control.

OUT MIXER

Finally the two channels BASS and CHORD are mixed together, the output level is set by the BASS LEV and CHORD LEV controls.
Two outputs jacks are present: the mono OUT jack on the back panel and the STEREO jack on the front panel useful for listening with phones and for separate channel out.

POWER INPUT

Power also non-stabilized 12 volts with + central tip There are two power inputs, one can be used for power link another device with custom cable.
